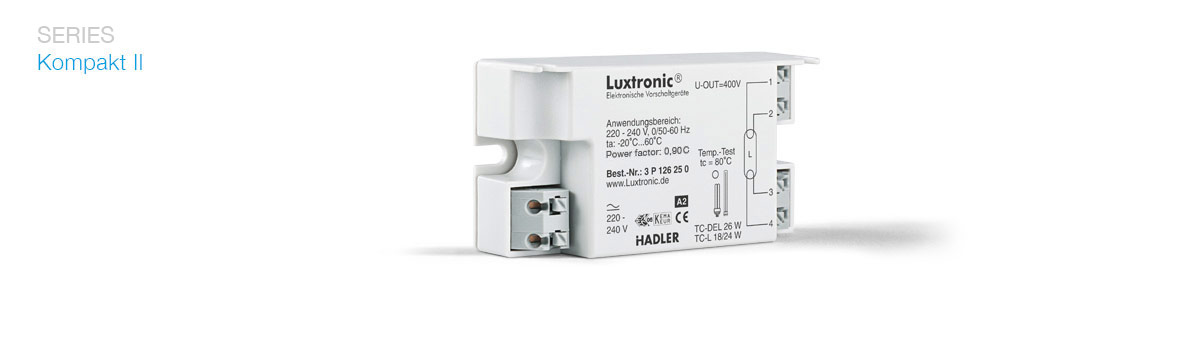

Maximum mechanical stability - the Luxtronic 1x26 W electronic ballast

Order number: 3 P 126 25 0 3P126250
Choose a product:
Electronic ballast Kompakt II, 1 x 7-13 W, TC-DEL/TEL/SEL, 220-240 V
Electronic ballast Kompakt II, 1 x 18 W, TC-DEL/TEL, 220-240 V

Electronic ballast Kompakt II, 1 x 26 W, TC-DEL/TEL, 220-240 V

Technical Data
Output:1 x 26 W, TC-DEL/TEL
Temperature range:-20 °C – 60 °C
Life-time:50.000 h bei ta = 60 °C
Efficiency (EEI):A2
Power factor:0,90 C
Voltage range:220-240 V, 0 / 50-60 Hz
Preheat start:< 1 s
Electronic ballast Kompakt II, 2 x 9-13 W, TC-DEL/TEL/SEL, 220-240 V
Features
Dimensions: 80 x 40 x 22 mm
Certificate: ENEC, CE
Up to 32 W or 2 x 13 W
Benefits
Ultra compact casing
Suitable for narrow construction areas
Suitable for emergency lighting applications
Double sided PCB for extra high mechanical strength
Economic: reduces replacement cost
